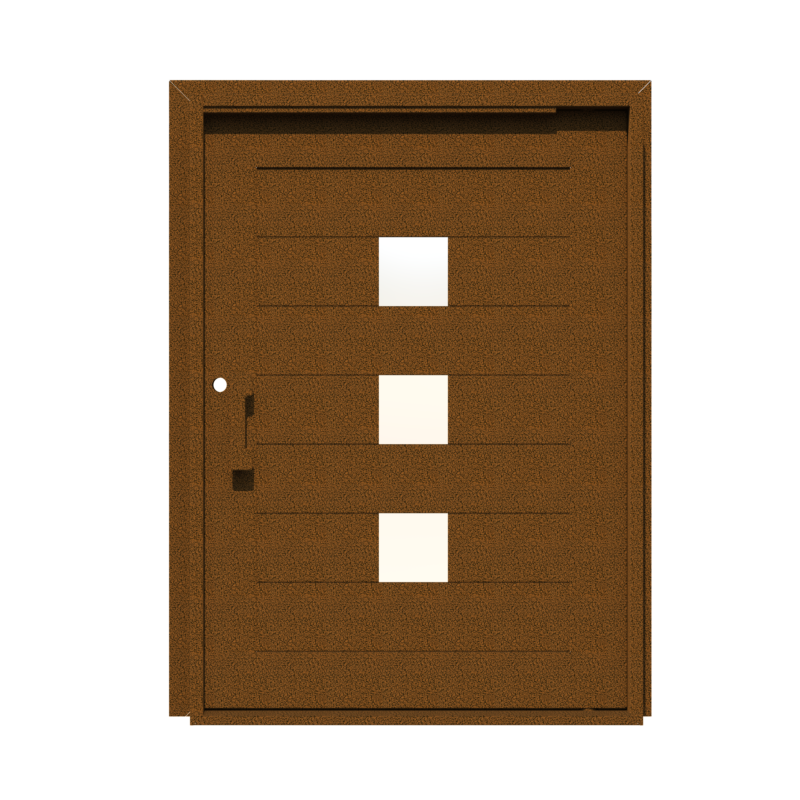

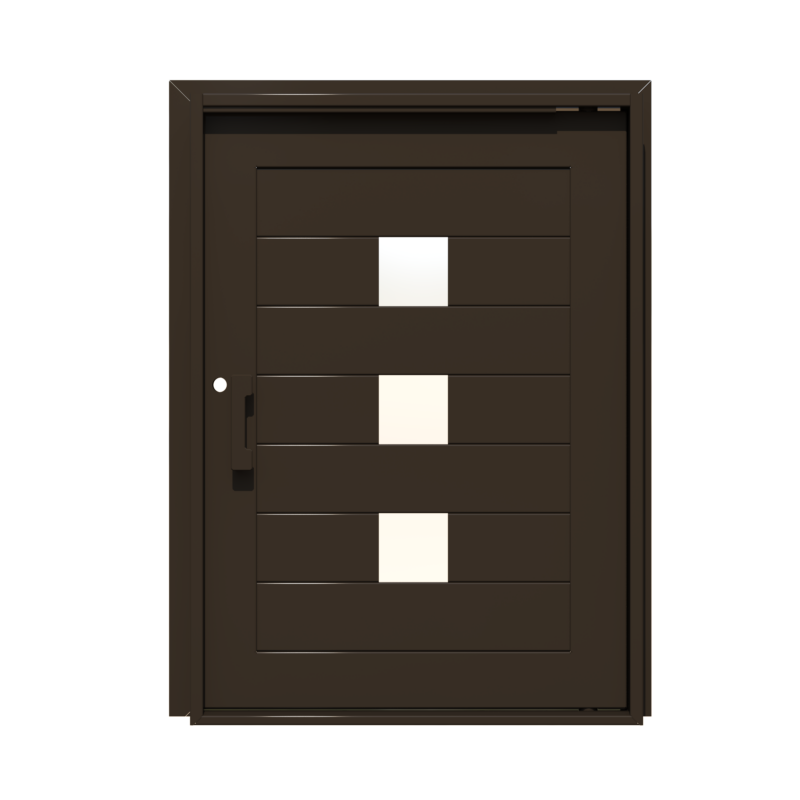

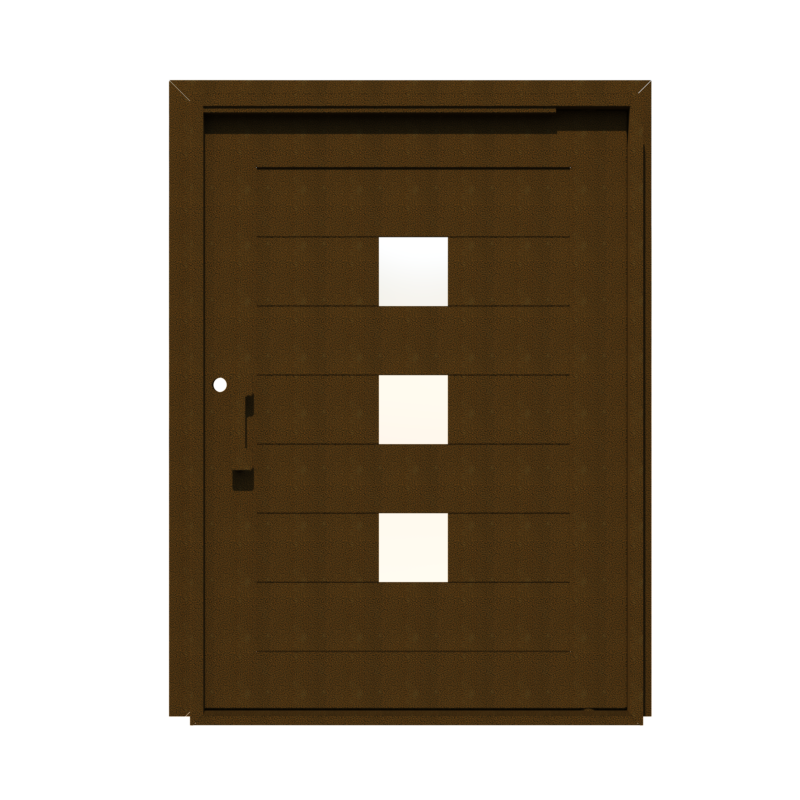

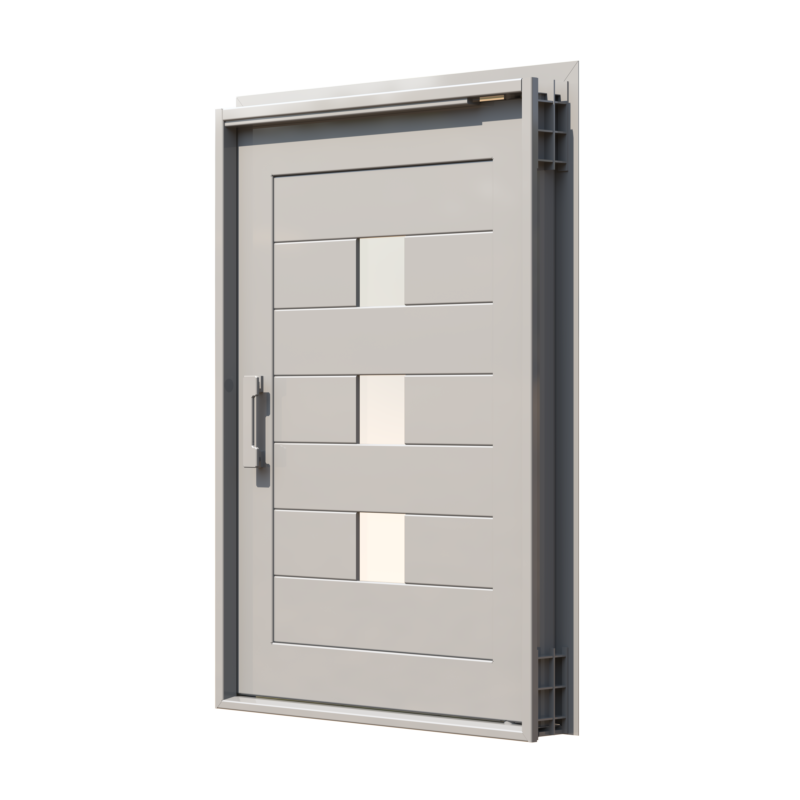

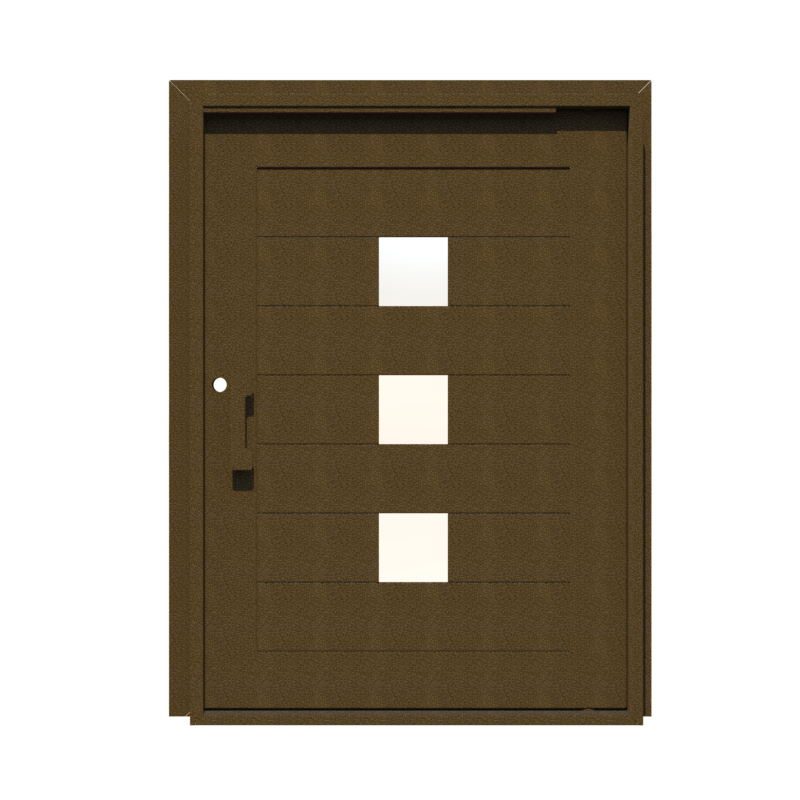

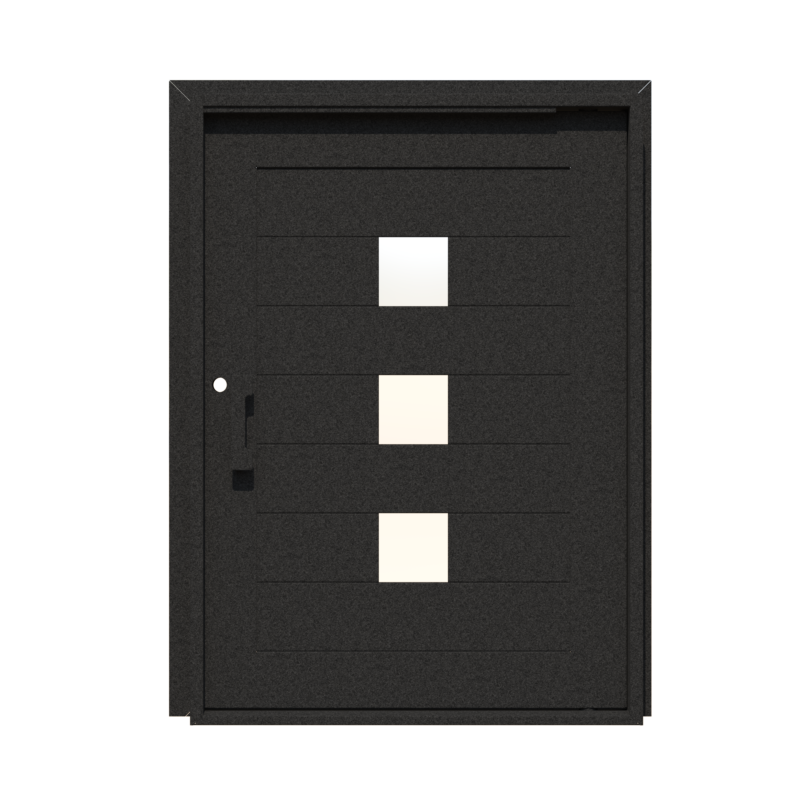

PIVOT DOOR Tre, Door and a Half Extra Wide PIVOT Custom Steel Door

$9,535.00

Tre PIVOT door and half Extra Wide PIVOT Custom Steel Door up to 60″ WIDE AND 10 FEET TALL PIVOT Custom Steel Door and frame system is like no other 2.75″ in diameter pivot shaft on the 3″ thick massive door.

When it comes to the security of your home, our custom single pivot door, storm doors and security doors are the best choice. Built to withstand even the toughest threats and elements, our iron and steel pivot doors are the epitome of modern door design and durability.

Learn more about the precision CNC machining, substantial steel components, and advanced robotic manufacturing that go into producing our hinges by watching this YouTube video: https://www.youtube.com/watch?v=hgbvA1G6H2k

Part Number: CR_Single_PivotB

Get the Tre in Your Custom Size

We are live at the factory, ready to assist you 5 days a week (M-F) from 8am to 5pm MST. Don’t hesitate to call us at (928) 852-7489 with your questions or to request a personalized quote.

This field is for validation purposes and should be left unchanged.

Door Size 1 Door Size

Select your door size range below. The exact door size will be built from the door measurement form that will be emailed to you after you place your order.
We offer size ranges:

(XL) Extra Large width range is 44"-60" Extra Large height range is 80"-112"
Note door size ranges are shown in generic styles

Casing 2 Casing

Threshold 3 Threshold

Cement cutting may be required to accommodate the trim. Adjust the Z-depth accordingly.

Standard Threshold allow 1/2" height clearence for tilt-in

Color 4 Color

We offer a variety of popular colors to choose from, but if you don't see the color you're looking for, we have over 5000 different options available. For assistance with selecting a color or placing an order, please chat or call our factory door specialist at (928) 852-7489 Note: At 10daydoors.com, we would like to inform you that if you opt for a gloss non-textured finish for your powder coat, it may reveal any welding, grinding, sanding, or imperfections. To avoid seeing fingerprints or common steel fabrication textures, we suggest choosing a matte textured or vein finish. While powder coat finishes prevent rust, they may not be able to reach certain areas when exposed to sea air or humid conditions, which can result in rust formation. In such cases, we suggest using color-matched caulking to remedy the affected areas.

Handle 5 Handle

All our doors come equipped with the Solido Handle Set as a standard feature. However, we also provide several other handle set styles to allow you to customize the appearance and aesthetic of your door. Our handle sets are designed to be modular and compatible with all door models we offer.

Handle Color 6 Handle Color

We offer a variety of popular colors to choose from, but if you don't see the color you're looking for, we have 100's of different options available. For assistance with selecting a color or placing an order, please chat or call our factory door specialist at (928) 852-7489.

In-swing 7 In-swing

All of our residential doors are made to swing inward opening to the inside unless otherwise specified on the door measurement form that will be emailed to you after you place your order. Please pick right or left in-swing below.

Backset 8 Backset

Select your backset below. Note backset dimension is from the edge of the door to the center of our standard 2.05 inch deadbolt hole. If you require a different size hole please note on the door measurement form that will be emailed to you after you place your order.

Deadbolt Options 9 Deadbolt Options

Our standard deadbolt hole is 2.05" in diameter and 45.5" on center from the bottom of the door. We offer extra deadbolt placement for additional security. We can add up to 2 additional deadbolt placements if you choose. Hole placement is as follows: standard 45.5" from bottom of door, lower 16" from bottom of door, upper 68" from bottom of door. Backset options are 2.75" or 2.375" we suggest 2.75" on all our doors unless necessary. Your deadbolt choice must fit a 3" thick door and fit your chosen backset

Deadbolt options

We provide top-notch security with our advanced armored doors and dual deadbolt system. With five 1-inch hardened steel bolts, our doors ensure maximum home protection. The exterior top deadbolt accepts a platinum 3-star anti-snap key, with three keys and code included. It can also be opened from inside with a thumb lever that operates the latch. The interior-only bottom deadbolt has a 1-inch steel bolt for added security. Rotating deadbolts extend further into the threshold for extra safety.

Maximum Security Lock

Glass Type 10 Glass Type

Sidelights 11 Sidelights

Window Security Protection 12 Window Security Protection

Please be aware that all of our door builds come with 1/4 inch clear tempered glass as a standard feature. Additional protection options are available below.

Window Aesthetics 13 Window Aesthetics

Please be aware that all of our door builds come with 1/4 inch clear tempered glass as a standard feature. Additional tint shading options are available below.

Your Selections Your Selections

    SKU: Tre PD Categories: Doors, Finished Doors, Finished Pivot Doors
    Share
    Description

    Tre PIVOT door and half Extra Wide PIVOT Custom Steel Door up to 60″ WIDE AND 10 FEET TALL PIVOT Custom Steel Door and frame system is like no other 2.75″ in diameter pivot shaft 3″ thick door.
    When it comes to the security of your home, our custom storm doors and security doors are the best choice. Built to withstand even the toughest threats and elements, our iron and steel pivot doors are the epitome of modern door design and durability. Each iron door comes with pre-mounted frames and smooth taper hinges for ease of use, as well as door trim for a polished look. Our frames are carefully crafted to fit seamlessly into 2×6 construction, measuring a sturdy 7.38 inches wide on the inside of the mounting flange or 2×4 construction, measuring a sturdy 5.38 inches wide on the inside of the mounting flange and are made of sturdy 11 gauge steel for maximum durability. All parts are powder coated to protect against wear and tear.

    Our customer service team is based right at our factory in Lake Havasu City, Arizona 7 days a week, so you can always get the support you need when you need it. Our doors are a robust 3 inches thick, providing an extra layer of protection. All of our hinges are CNC machined in-house using taper bearings for smooth and easy movement, and are able to handle both the side and vertical force of our doors with ease.

    For added security, our custom doors come with a standard ¼ inch tempered glass center insert, but you can request that it be laminated with 3M security film for unwanted entry, bullet, bomb and blast resistance. Don’t take any chances with your safety – choose our doors for the ultimate peace of mind.
